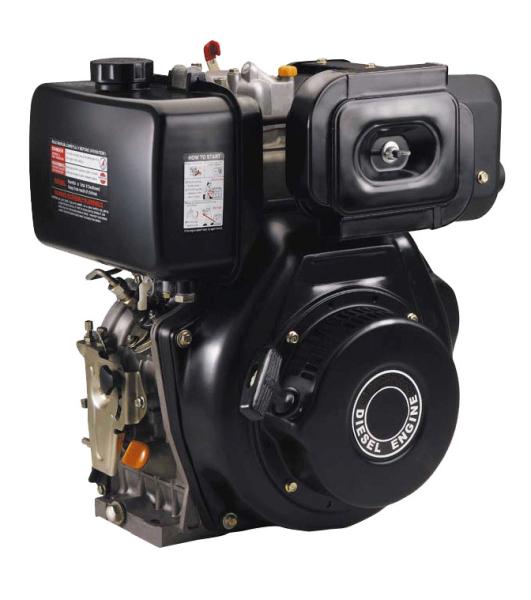

2.5KW 24Ah 0.75L Single Cylinder 4 Stroke Diesel Engine

    Buy cheap 2.5KW 24Ah 0.75L Single Cylinder 4 Stroke Diesel Engine from wholesalers

    Buy cheap 2.5KW 24Ah 0.75L Single Cylinder 4 Stroke Diesel Engine from wholesalers
    • Buy cheap 2.5KW 24Ah 0.75L Single Cylinder 4 Stroke Diesel Engine from wholesalers

    2.5KW 24Ah 0.75L Single Cylinder 4 Stroke Diesel Engine

    Ask Lasest Price
    Brand Name : DEHRAY
    Model Number : RD170F
    Certification : CE, EURO V, EPA, ISO9001
    Price : Based On Order
    Payment Terms : T/T, L/C, D/P, Western Union, D/A
    Supply Ability : 500 Sets Per Week
    Delivery Time : 20 Working Days
    • Product Details
    • Company Profile

    2.5KW 24Ah 0.75L Single Cylinder 4 Stroke Diesel Engine

    2.5KW Single Cylinder Engine With Advanced Noise Reduction Design​


    Perfect injection technology


    DEHRAY independently developed precise injection system, ensure efficient fuel injection. High precision injection pump and direct injection system make fuel consumption reach the ideal level. Good air intake and sufficient combustion make its emission lower to meet EPA standard.


    Advanced noise reduction design


    The efficient muffler reduces the exhaust noise significantly. Large air filters minimize intake noise. The engine noise is further reduced by the high strength cylinder block, cylinder head cover and the reasonable timing structure of intake and exhaust valves.


    Unique transmission system


    The new generation of DEHRAY portable diesel engine adopts well-designed gear transmission mechanism, which can greatly reduce vibration and noise.


    Quick, easy starting with standard recoil


    A special auto-return decompressor and efficient combustion system breeze through starting with electric starting also offered as an option

    Basic parameters
    TypeSingle-cylinder, vertical, air-cooled,
    four-stroke, direct injection
    Bore× Stroke (mm)70×55
    DisplacementL0.211
    Compression ratio20
    Rated power/Rated speedkW/r/min2.5/3000 2.8/3600
    The lowest speed at zero loadr/min≤1300
    Lubricating systemPressure splashed
    Starting systemRecoil starter or Electric starter
    Rotation direction
    (face to the output axle)
    Anticlockwise
    Fuel tank capacityL2.5
    Fuel consumption(g/kW.h)/r/min280.2/3000 288.3/3600
    Lube oil typeCD grade or SAE 10W-30, 15W-40
    Lube oil capacityL0.75
    Starting Motor CapacityV, kW12V 0.8kW
    Charging Generator CapacityV, A12V 3A
    Accumulator CapacityV, Ah12V 24Ah-36Ah
    Overall dimension(L×W×H)mm335×380×415
    Dry weightkg≤27
