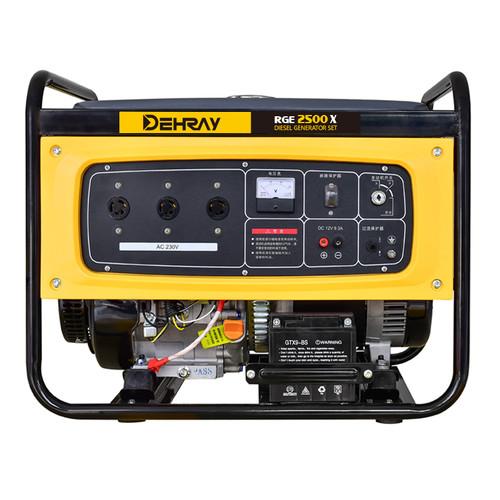

EPA Certificated Portable Silent Generators 46KGS Small Generator Easy Operated

Generator set

Rated frequency	Hz	50 60
Rated power	kVA	2.0 2.2
Max. power	kVA	2.2 2.4
Rated voltage	V	115/230 120/240
Rated current	A	17.4/8.7 18.3/9.2
Rated rotation speed	r/min	3000 3600

Generator

Pole No.		2
Phase number		Single phase
Excitation mode		Self-exciation and constant voltage(with AVR)
Power factor	COS	1.0
Insulation grade	mm	F

Engine

Engine type		RG200G
Structure type		Single-cylinder, 4-stroke,air-cooled, cylinder inclined, overhead valve
Bore x stroke	mm	68×54
Displacement	L	0.196
Compression ratio	mm	8.5 : 1
Rated power	kW	3.6 4.0
Lubrication system		TCI
Lube oil brand		Above SF or SAE 10W-30, 15W-40
Lube capacity	L	0.6
Starting system		Recoil starter
Fuel consumption ratio	g/kW.h	395
Fuel type		Vehicle lead-free petrol

Genset

Panel type		General panel
Output	Receptacle	2-Single phase
Output	Connection pole	without
Nosie level(7m)	dB(A)	66
Fue tank capacity	L	13.5
Overall dimensions	mm	590×430×430
Net weight	kg	46

Dehray Power is committed to providing high quality, high performance, advanced technology engine products and generator set products to the market, as well as comprehensive after-sales technical support and professional technical training. No matter before or after sales, we are trying to provide better service.

From the first demand of the customer, the related engineers would research and analyze on the engine, alternator, control system, product structure, installation and other aspects to provide customers with a variety of power solutions.

Then combined with customer opinions, finalize the customerized solutions to meet customer needs. Our after-sales outlets in various regions to provide customers with convenient localized sales and service support.
