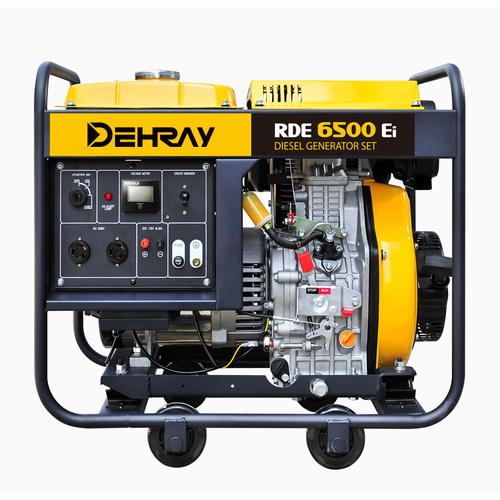

5KW Deisel Generator With Improved I-AVR Technology Intelligent Automatic Voltage Regulator

Ask Lasest Price
Brand Name :	DEHRAY
Model Number :	RDE6500Ei
Certification :	CE, EURO V, EPA, ISO9001
Price :	Based On Order
Payment Terms :	T/T, L/C, D/P, Western Union, D/A
Supply Ability :	500 Sets Per Week
Delivery Time :	20 Working Days

Add to Cart

Product Details
Company Profile

5KW Deisel Generator With Improved I-AVR Technology Intelligent Automatic Voltage Regulator

5KW Deisel Generator With Improved I-AVR Technology Intelligent Automatic Voltage Regulator

Generator set

Rated frequency	Hz	50 60
Rated power	kVA	4.5 5.0
Max. power	kVA	5.0 5.5
Rated voltage	V	115/230 120/240
Rated current	A	39.1/19.6 41.7/20.8
Rated rotation speed	r/min	3000 3600

Generator

Pole No.		2
Phase number		Single phase
Excitation mode		Self-exciation and constant voltage(with i-AVR)
Power factor	COS	1.0
Insulation grade	mm	F

Engine

Engine type		RD186FAG
Structure type		Single-cylinder, vertical, 4-stroke, air-cooled, direct-injected
Bore x stroke	mm	86×72
Displacement	L	0.418
Compression ratio	mm	19 : 1
Rated power	kW	5.7 6.3
Lubrication system		Pressure splashed
Lube oil brand		Above CD or SAE 10W-30, 15W-40
Lube capacity	L	1.65
Starting system		12V Electric starter
Charging generator capacity	V-Ah	12V 36Ah
Fuel consumption ratio	g/kW.h	275.1 281.5
Fuel type		Diesel : 0# (summer), -10# (winter), -35# (chillness)

Genset

Panel type		General panel
Output	Receptacle	2-Single phase
Output	Connection pole	without
Nosie level(7m)	dB(A)	77
Fue tank capacity	L	13.5
Overall dimensions	mm	720×492×655
Net weight	kg	100

Improved i-AVR technology

Intelligent Automatic Voltage Regulator (i-AVR) is a microprocessor controller.

i-AVR adjustments are driven off the PMG generator versus a sensor winding in traditional AVR systems.

It can also communicate with your computer with a UART-RS232 interface. This allows the generators data: including voltage, current, and battery voltage to be seen from computer.

● Microprocessor, better integration and reliability.

● Parameter monitoring: voltage, current, frequency, output power, running hours, excitation voltage

and excitation current output.

● Soft start function.

● Over excitation limiting protection (OEL).

● Protections: genset over voltage, AVR over voltage, low frequency, over current.

● Parameter regulation (voltage/frequency).

● Over load protection.

● Real time monitoring: generator voltage, excitation voltage & secondary winding voltage.

● Protections: over output voltage, high/low frequency, i-AVR over heating.

● All parameters can be regulated through digital adjustment.
