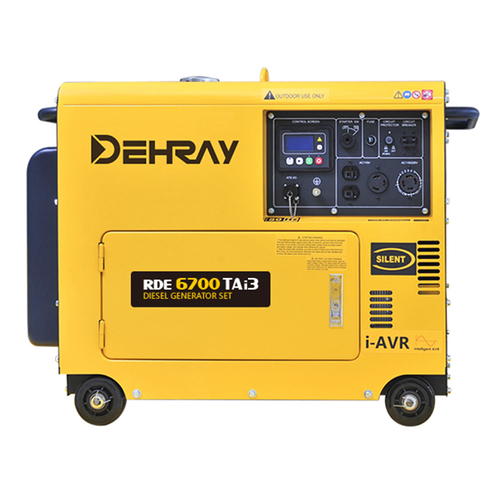

Double Structure Deisel General Generator Rated Power 6KW muffler reduces exhaust noise

Generator set

Rated frequency	Hz	50 60
Rated power	kVA	5.5 6.3
Max. power	kVA	6.0 7.0
Rated voltage	V	400/230 416/240
Rated current	A	7.9 8.7
Rated rotation speed	r/min	3000 3600

Generator

Pole No.		2
Phase number		Three phase
Excitation mode		Self-exciation and constant voltage(with i-AVR)
Power factor	COS	0.8(lag)
Insulation grade	mm	F

Engine

Engine type		RD186FAGET
Structure type		Single-cylinder, vertical, 4-stroke, air-cooled, direct-injected
Bore x stroke	mm	86×72
Displacement	L	0.418
Compression ratio	mm	19 : 1
Rated power	kW	5.7 6.3
Lubrication system		Pressure splashed
Lube oil brand		Above CD or SAE 10W-30, 15W-40
Lube capacity	L	1.65
Starting system		12V Electric starter
Charging generator capacity	V-Ah	12V 36Ah
Fuel consumption ratio	g/kW.h	275.1 281.5
Fuel type		Diesel : 0# (summer), -10# (winter), -35# (chillness)

Genset

Panel type		HGM4020N
Output	Receptacle	1-Single phase, 1-Three phase
Output	Connection pole	without
Nosie level(7m)	dB(A)	72
Fue tank capacity	L	15
Overall dimensions	mm	930×530×740
Net weight	kg	158

Dehray Power is committed to providing high quality, high performance, advanced technology engine products and generator set products to the market, as well as comprehensive after-sales technical support and professional technical training. No matter before or after sales, we are trying to provide better service.

From the first demand of the customer, the related engineers would research and analyze on the engine, alternator, control system, product structure, installation and other aspects to provide customers with a variety of power solutions.

Then combined with customer opinions, finalize the customerized solutions to meet customer needs. Our after-sales outlets in various regions to provide customers with convenient localized sales and service support.
