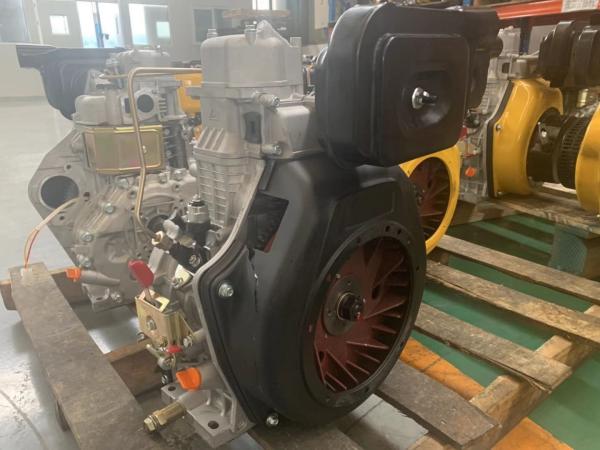

    CE 47kg 0.8KW Air Cooled Single Cylinder Diesel Engine

    Ask Lasest Price
    Brand Name : DEHRAY
    Model Number : RD186F
    Certification : CE, EURO V, EPA, ISO9001
    Price : Based On Order
    Payment Terms : T/T, L/C, D/P, Western Union, D/A
    Supply Ability : 500 Sets Per Week
    Delivery Time : 20 Working Days
    • Product Details
    • Company Profile

    CE 47kg 0.8KW Air Cooled Single Cylinder Diesel Engine

    CE Certification Air Cooled Single Cylinder Diesel Engine EURO V Diesel Engine​


    Perfect injection technology


    DEHRAY independently developed precise injection system, ensure efficient fuel injection. High precision injection pump and direct injection system make fuel consumption reach the ideal level. Good air intake and sufficient combustion make its emission lower to meet EPA standard.


    Advanced noise reduction design


    The efficient muffler reduces the exhaust noise significantly. Large air filters minimize intake noise. The engine noise is further reduced by the high strength cylinder block, cylinder head cover and the reasonable timing structure of intake and exhaust valves.


    Basic parameters
    TypeSingle-cylinder, vertical, air-cooled,
    four-stroke, direct injection
    Bore× Stroke (mm)86×70
    DisplacementL0.406
    Compression ratio19
    Rated power/Rated speedkW/r/min5.70/3000 6.3/3600
    The lowest speed at zero loadr/min≤1300
    Lubricating systemPressure splashed
    Starting systemRecoil starter or Electric starter
    Rotation direction
    (face to the output axle)
    Anticlockwise
    Fuel tank capacityL5.5
    Fuel consumption(g/kW.h)/r/min275.1/3000 281.5/3600
    Lube oil typeCD grade or SAE 10W-30, 15W-40
    Lube oil capacityL1.65
    Starting Motor CapacityV, kW12V 0.8kW
    Charging Generator CapacityV, A12V 3A
    Accumulator CapacityV, Ah12V 36Ah
    Overall dimension(L×W×H)mm420×440×495
    Dry weightkg≤47
